Benefits and Features
-
Five ribs with four wide, straight grooves for precise handling and outstanding traction
-
Decoupling tread design suitable for long-distance travel
-
Applicable for steer and free-rolling wheel position

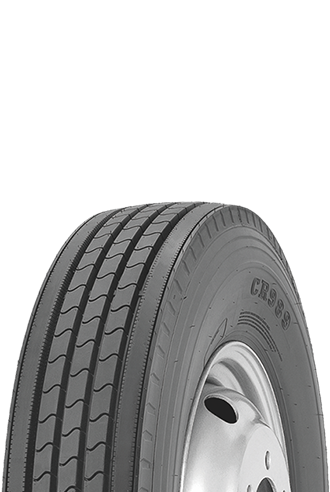

CR989
| Size | LR/PR | Service index |
Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | |||||||||||||
| (kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
| 11R22.5 | G/14 | 144/142L | 14.2 | 8.25 | 1054 | 279 | 2800 | 6175 | 720 | 105 | 2650 | 5840 | 720 | 105 |
| 11R22.5 | H/16 | 148/145M | 14.2 | 8.25 | 1054 | 279 | 3150 | 6940 | 850 | 123 | 2900 | 6390 | 850 | 123 |
| 295/75R22.5 | G/14 | 144/141L | 14.2 | 9.00 | 1014 | 298 | 2800 | 6175 | 760 | 110 | 2575 | 5675 | 760 | 110 |
| 11R24.5 | G/14 | 146/143L | 15.0 | 8.25 | 1104 | 279 | 3000 | 6610 | 720 | 105 | 2725 | 6005 | 720 | 105 |
| 11R24.5 | H/16 | 149/146L | 15.0 | 8.25 | 1104 | 279 | 3250 | 7160 | 830 | 120 | 3000 | 6610 | 830 | 120 |
| 285/75R24.5 | G/14 | 144/141L | 15.0 | 8.25 | 1050 | 283 | 2800 | 6175 | 760 | 110 | 2575 | 5675 | 760 | 110 |
