Description
Benefits and Features
-
Strong center tread blocks provide excellent all-weather traction
-
Special designed tread grooves reduce stone retention for extended tyre life
-
Advanced tread compound provides remarkable performance for long haul service

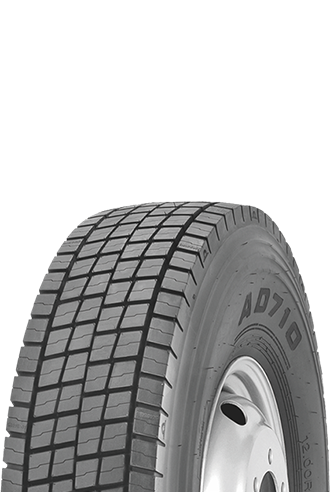

AD710A
| Size | LR/PR | Service index |
Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | |||||||||||||
| (kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
| 265/70R19.5 | H/16 | 140/138M | 16.0 | 7.50 | 867 | 262 | 2500 | 5510 | 775 | 112 | 2360 | 5200 | 775 | 112 |
| 265/70R19.5 | J/18 | 143/141J | 16.0 | 7.50 | 867 | 262 | 2725 | 6005 | 850 | 123 | 2575 | 5675 | 850 | 123 |
| 11R22.5 | G/14 | 144/142L | 19.6 | 8.25 | 1065 | 279 | 2800 | 6175 | 720 | 105 | 2650 | 5840 | 720 | 105 |
| 11R22.5 | H/16 | 148/145L | 19.6 | 8.25 | 1065 | 279 | 3150 | 6940 | 850 | 123 | 2900 | 6390 | 850 | 123 |
| 12R22.5 | J/18 | 152/149L | 20.0 | 9.00 | 1085 | 300 | 3550 | 7830 | 930 | 135 | 3250 | 7160 | 930 | 135 |
| 295/80R22.5 | H/16 | 150/147M | 20.6 | 9.00 | 1050 | 298 | 3350 | 7390 | 830 | 120 | 3075 | 6780 | 830 | 120 |
| 295/80R22.5 | J/18 | 152/149M | 20.6 | 9.00 | 1050 | 298 | 3550 | 7830 | 900 | 131 | 3250 | 7160 | 900 | 131 |
| 315/80R22.5 | J/18 | 154/151M(156/150L) | 20.6 | 9.00 | 1082 | 312 | 3750 | 8270 | 830 | 120 | 3450 | 7610 | 830 | 120 |
| 315/80R22.5 | L/20 | 157/154K | 20.6 | 9.00 | 1082 | 312 | 4125 | 9090 | 900 | 130 | 3750 | 8270 | 900 | 130 |
