Description
Benefits and Features
-
Ultra deep tread with robust tread blocks features excellent wet traction and longer tyre life
-
Drive axle applicable providing lateral stability and multiple retreads
-
Latest carcass technology guarantees superior footprint and enhances damage resistance

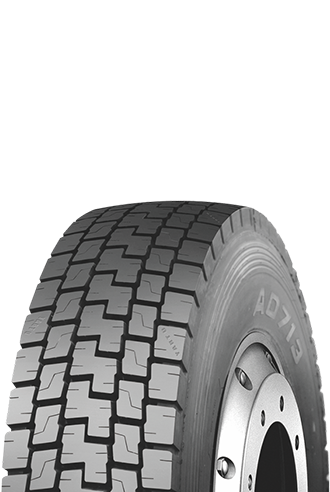

AD713
| Size | LR/PR | Service index |
Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | |||||||||||||
| (kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
| 11R22.5 | G/14 | 144/142 L | 22.6 | 8.25 | 1065 | 279 | 2800 | 6175 | 720 | 105 | 2650 | 5840 | 720 | 105 |
| 11R22.5 | H/16 | 148/145L | 22.6 | 8.25 | 1065 | 279 | 3150 | 6940 | 850 | 123 | 2900 | 6390 | 850 | 123 |
| 275/70R22.5 | H/16 | 148/145L | 18.5 | 8.25 | 958 | 276 | 3150 | 6940 | 900 | 130 | 2900 | 6395 | 900 | 130 |
| 295/80R22.5 | H/16 | 150/147M | 20.0 | 9.00 | 1050 | 298 | 3350 | 7390 | 830 | 120 | 3075 | 6780 | 830 | 120 |
| 295/80R22.5 | J/18 | 152/149M | 20.0 | 9.00 | 1050 | 298 | 3550 | 7830 | 900 | 131 | 3250 | 7160 | 900 | 131 |
| 315/80R22.5 | J/18 | 154/151M(156/150L) | 22.5 | 9.00 | 1082 | 312 | 3750 | 8270 | 830 | 120 | 3450 | 7610 | 830 | 120 |
| 315/80R22.5 | L/20 | 157/154K | 22.5 | 9.00 | 1076 | 312 | 4125 | 9090 | 900 | 130 | 3750 | 8270 | 900 | 130 |
