Description
Benefits and Features
-
Tread pattern provides extended even wear and offers excellent wet traction
-
Advanced compound promotes mileage before removal for long tyre life

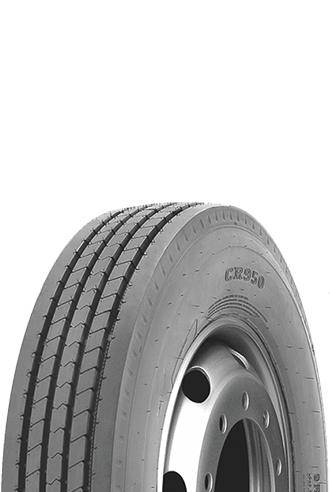

CR950
| Size | LR/PR | Service index |
Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | |||||||||||||
| (kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
| 7.50R16 | G/14 | 122/118L | 12.0 | 6.00G | 805 | 215 | 1500 | 3305 | 770 | 112 | 1320 | 2910 | 770 | 112 |
| 8.25R16 | H/16 | 128/124L | 14.0 | 6.50H | 855 | 235 | 1800 | 3970 | 770 | 112 | 1600 | 3525 | 770 | 112 |
| 7.50R20 | G/14 | 130/128L | 13.0 | 6.0 | 935 | 215 | 1900 | 4190 | 830 | 120 | 1800 | 3970 | 830 | 120 |
| 8.25R20 | H/16 | 139/137K | 14.0 | 6.5 | 974 | 236 | 2430 | 5360 | 930 | 135 | 2300 | 5070 | 930 | 135 |
| 8.5R17.5 | F/12 | 121/120L | 12.0 | 6.00 | 802 | 215 | 1450 | 3200 | 625 | 91 | 1400 | 3090 | 625 | 91 |
| 9.5R17.5 | G/14 | 129/127L | 13.0 | 6.75 | 842 | 240 | 1850 | 4080 | 750 | 109 | 1750 | 3860 | 750 | 109 |
| 9.5R17.5 | H/16 | 143/141J | 13.0 | 6.75 | 842 | 240 | 2725 | 6005 | 875 | 128 | 2575 | 5675 | 875 | 128 |
| 215/75R17.5 | H/16 | 135/133J | 13.0 | 6.00 | 767 | 211 | 2180 | 4805 | 850 | 123 | 2060 | 4540 | 850 | 123 |
| 8R22.5 | G/14 | 130/128M | 13.5 | 6.00 | 935 | 203 | 1900 | 4190 | 830 | 120 | 1800 | 3970 | 830 | 120 |
| 9R22.5 | G/14 | 136/134M | 14.0 | 6.75 | 974 | 229 | 2240 | 4940 | 830 | 120 | 2120 | 4675 | 830 | 120 |
| 10R22.5 | H/16 | 144/142M | 15.0 | 7.50 | 1019 | 254 | 2800 | 6175 | 900 | 130 | 2650 | 5840 | 900 | 130 |
*Reserves the rights of final interpretation and modification;
