Description
Benefits and Features
-
Applicable for drive wheel position on long-distance and regional transportation
-
Solid close shoulder design with special tread compound for enhanced traction
-
Computer designed carcass reduces pressure on road and promotes even wear
-
Improved casing structure provides remarkable footprint which guarantees longer tread life

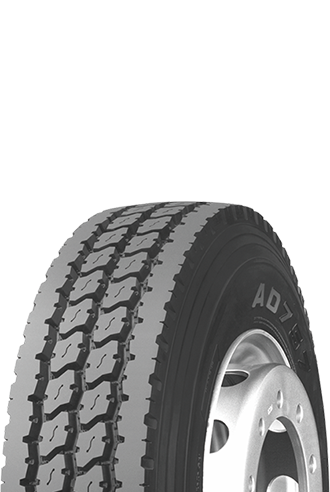

AD757
| Size | LR/PR | Service index |
Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | |||||||||||||
| (kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
| 11R22.5 | G/14 | 144/142L | 20.6 | 8.25 | 1065 | 279 | 2800 | 6175 | 720 | 105 | 2650 | 5840 | 720 | 105 |
| 11R22.5 | H/16 | 148/145L | 20.6 | 8.25 | 1065 | 279 | 3150 | 6940 | 850 | 123 | 2900 | 6390 | 850 | 123 |
| 295/75R22.5 | G/14 | 144/141L | 20.6 | 9.00 | 1020 | 298 | 2800 | 6175 | 760 | 110 | 2575 | 5675 | 760 | 110 |
| 11R24.5 | G/14 | 146/143L | 20.6 | 8.25 | 1116 | 279 | 3000 | 6610 | 720 | 105 | 2725 | 6005 | 720 | 105 |
| 11R24.5 | H/16 | 149/146L | 20.6 | 8.25 | 1116 | 279 | 3250 | 7160 | 830 | 120 | 3000 | 6610 | 830 | 120 |
| 285/75R24.5 | G/14 | 144/141L | 20.6 | 8.25 | 1056 | 283 | 2800 | 6175 | 760 | 110 | 2575 | 5675 | 760 | 110 |
