Description
Benefits and Features
-
Applicable for steer and free-rolling wheel position
-
Five ribs with four straight grooves for precise handling
-
Special designed tyre casing for better mileage and more value for customers
-
Cross rib sipes provide better wet traction and reduce external noise

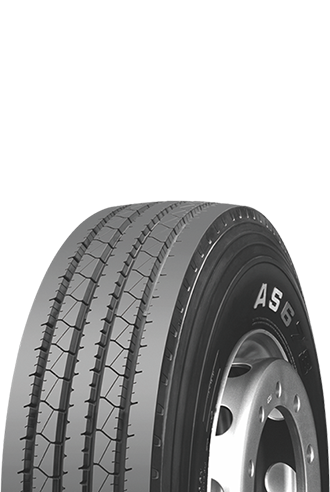

AS678
| Size | LR/PR | Service index |
Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | |||||||||||||
| (kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
| 11.00R20 | J/18 | 152/149K | 16.0 | 8.0 | 1085 | 293 | 3550 | 7825 | 930 | 135 | 3250 | 7165 | 930 | 135 |
| 11.00R22 | H/16 | 152/149K | 14.2 | 8.0 | 1122 | 288 | 3550 | 7825 | 830 | 120 | 3250 | 7165 | 830 | 120 |
| 9.5R17.5 | G/14 | 129/127L | 13.0 | 6.75 | 842 | 240 | 1850 | 4080 | 750 | 109 | 1750 | 3860 | 750 | 109 |
| 9.5R17.5 | H/16 | 143/141J | 13.0 | 6.75 | 842 | 240 | 2725 | 6005 | 875 | 128 | 2575 | 5675 | 875 | 128 |
| 225/80R17.5 | H/16 | 123/122L | 14.0 | 6.75 | 805 | 226 | 1550 | 3415 | 700 | 102 | 1500 | 3305 | 700 | 102 |
| 225/90R17.5 | H/16 | 127/125L | 13.0 | 6.75 | 851 | 226 | 1750 | 3860 | 700 | 102 | 1650 | 3640 | 700 | 102 |
| 11R22.5 | G/14 | 144/142M | 14.2 | 8.25 | 1054 | 279 | 2800 | 6175 | 720 | 105 | 2650 | 5840 | 720 | 105 |
| 11R22.5 | H/16 | 148/145L | 14.2 | 8.25 | 1054 | 279 | 3150 | 6940 | 850 | 123 | 2900 | 6390 | 850 | 123 |
| 255/70R22.5 | H/16 | 140/137M | 14.5 | 7.50 | 930 | 255 | 2500 | 5510 | 830 | 120 | 2300 | 5070 | 830 | 120 |
| 295/75R22.5 | G/14 | 144/141L | 14.2 | 9.00 | 1014 | 298 | 2800 | 6175 | 760 | 110 | 2575 | 5675 | 760 | 110 |
| 275/80R22.5 | H/16 | 149/146M | 14.0 | 8.25 | 1012 | 276 | 3250 | 7165 | 850 | 123 | 3000 | 6610 | 850 | 123 |
| 295/80R22.5 | H/16 | 150/147M | 15.0 | 9.00 | 1044 | 298 | 3350 | 7390 | 830 | 120 | 3075 | 6780 | 830 | 120 |
| 295/80R22.5 | J/18 | 152/149M | 15.0 | 9.00 | 1044 | 298 | 3550 | 7830 | 900 | 131 | 3250 | 7160 | 900 | 131 |
| 315/80R22.5 | J/18 | 154/151M(156/153L) | 15.0 | 9.00 | 1076 | 312 | 3750 | 8270 | 830 | 120 | 3450 | 7610 | 830 | 120 |
| 315/80R22.5 | L/20 | 157/154K | 15.0 | 9.00 | 1076 | 312 | 4125 | 9090 | 900 | 130 | 3750 | 8270 | 900 | 130 |
| 11R24.5 | G/14 | 146/143L | 14.2 | 8.25 | 1104 | 279 | 3000 | 6610 | 720 | 105 | 2725 | 6005 | 720 | 105 |
| 11R24.5 | H/16 | 149/146L | 14.2 | 8.25 | 1104 | 279 | 3250 | 7160 | 830 | 120 | 3000 | 6610 | 830 | 120 |
| 285/75R24.5 | G/14 | 144/141L | 14.2 | 8.25 | 1050 | 283 | 2800 | 6175 | 760 | 110 | 2575 | 5675 | 760 | 110 |
*Reserves the rights of final interpretation and modification;
