Description
Benefits and Features
-
Strong tyre carcass offers lateral durability for regional application
-
Good damage protection and even wear profile feature outstanding performance in all conditions
-
Excellent traction and good handling

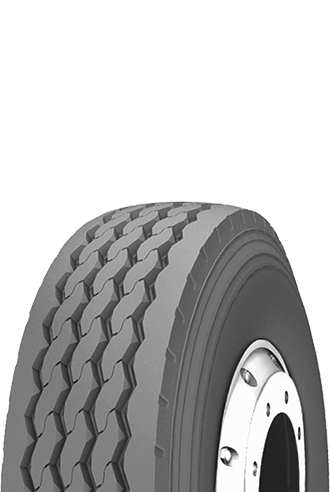

AT560
| Size | LR/PR | Service index |
Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | |||||||||||||
| (kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
| 385/65R22.5 | J/18 | 158L(160K) | 16.0 | 11.75 | 1072 | 389 | 4250 | 9370 | 850 | 125 | - | - | - | - |
| 385/65R22.5 | L/20 | 160K(158L) | 16.0 | 11.75 | 1072 | 389 | 4500 | 9920 | 900 | 130 | - | - | - | - |
| 425/65R22.5 | L/20 | 165K | 16.7 | 12.25 | 1124 | 430 | 5150 | 11340 | 830 | 120 | - | - | - | - |
| 315/80R22.5 | J/18 | 154/151M | 16.0 | 9.00 | 1076 | 312 | 3750 | 8270 | 830 | 120 | 3450 | 7610 | 830 | 120 |
| 315/80R22.5 | L/20 | 157/154K | 16.0 | 9.00 | 1076 | 312 | 4125 | 9090 | 900 | 130 | 3750 | 8270 | 900 | 130 |
