Description
Benefits and Features
-
Wide and deep tread enhance driving stability and mileage on all kinds of roads
-
Special tread compound and carcass help to guarantee long tyre life and better retreadability
-
Zig-zag main grooves provide superb traction level

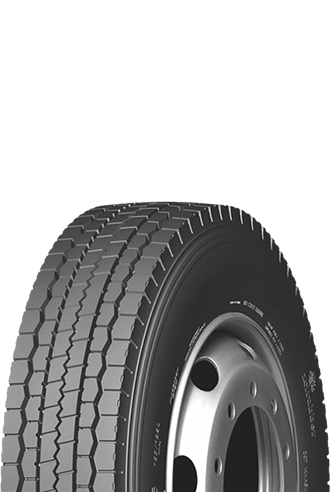

AZ534
| Size | LR/PR | Service index |
Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | |||||||||||||
| (kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
| 225/80R17.5 | H/16 | 123/122L | 15.8 | 6.75 | 805 | 226 | 1550 | 3415 | 700 | 102 | 1500 | 3305 | 700 | 102 |
| 225/90R17.5 | H/16 | 127/125L | 15.8 | 6.75 | 851 | 226 | 1750 | 3860 | 700 | 102 | 1650 | 3640 | 700 | 102 |
| 245/70R19.5 | G/14 | 133/131M | 16.0 | 7.50 | 839 | 248 | 2060 | 4540 | 760 | 110 | 1950 | 4300 | 760 | 110 |
| 245/70R19.5 | H/16 | 136/134M | 16.0 | 7.50 | 839 | 248 | 2240 | 4940 | 830 | 120 | 2120 | 4675 | 830 | 120 |
| 265/70R19.5 | H/16 | 140/138M | 16.0 | 7.50 | 867 | 262 | 2500 | 5510 | 775 | 112 | 2360 | 5200 | 775 | 112 |
| 265/70R19.5 | J/18 | 143/141J | 16.0 | 7.50 | 867 | 262 | 2725 | 6005 | 850 | 123 | 2575 | 5675 | 850 | 123 |
