Description
Benefits and Features
-
Premium five-rib tread with various pitches to provide quiet and comfortable riding
-
Stone ejection design reduces stone retention and casing penetration
-
Computer aided casing design helps improve footprint for better mileage performance

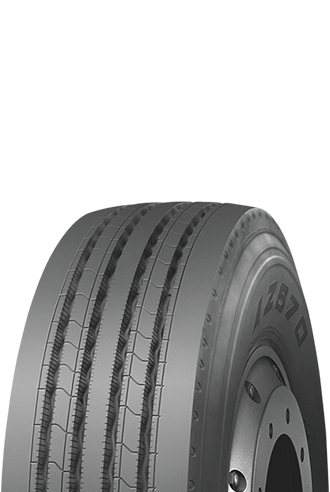

AZ670
| Size | LR/PR | Service index |
Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | |||||||||||||
| (kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
| 11R22.5 | G/14 | 144/142M | 16.0 | 8.25 | 1054 | 279 | 2800 | 6175 | 720 | 105 | 2650 | 5840 | 720 | 105 |
| 11R22.5 | H/16 | 148/145M | 16.0 | 8.25 | 1054 | 279 | 3150 | 6940 | 850 | 123 | 2900 | 6390 | 850 | 123 |
| 12R22.5 | J/18 | 152/149L | 16.0 | 9.00 | 1085 | 300 | 3550 | 7830 | 930 | 135 | 3250 | 7160 | 930 | 135 |
| 255/70R22.5 | H/16 | 140/137M | 15.0 | 7.50 | 930 | 255 | 2500 | 5510 | 830 | 120 | 2300 | 5070 | 830 | 120 |
| 295/80R22.5 | H/16 | 150/147M | 16.0 | 9.00 | 1044 | 298 | 3350 | 7390 | 830 | 120 | 3075 | 6780 | 830 | 120 |
| 295/80R22.5 | J/18 | 152/149M | 16.0 | 9.00 | 1044 | 298 | 3550 | 7830 | 900 | 131 | 3250 | 7160 | 900 | 131 |
