Description
Benefits and Features
-
Multiple gripping edges slice through water and road films for a solid grip
-
Four wide continuous rib design help resist tread squirm and heel-and-tow wear for exceptionally long tread life
-
Three circumferential grooves help deliver all-season traction on wet or dry road
-
Closed shoulder design helps promote even wear throughout the tyre life

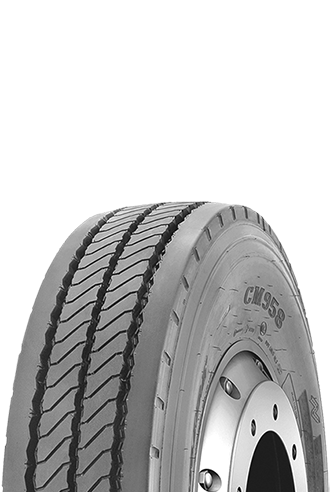

CM958 Tubeless
| Size | LR/PR | Service index |
Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | |||||||||||||
| (kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
| 7.50R15 | H/16 | 135/133J | 13.0 | 6.0 | 780 | 212 | 2180 | 4806 | 850 | 123 | 2060 | 4541 | 850 | 123 |
| 8.25R15 | J/18 | 143/141L | 14.0 | 6.5 | 836 | 234 | 2725 | 6005 | 850 | 123 | 2575 | 5675 | 850 | 123 |
| 7.00R16 | G/14 | 118/114L | 14.0 | 5.50F | 785 | 200 | 1320 | 2910 | 770 | 112 | 1180 | 2600 | 770 | 112 |
| 7.50R16 | G/14 | 122/118L | 15.5 | 6.00G | 815 | 215 | 1500 | 3305 | 770 | 112 | 1320 | 2910 | 770 | 112 |
| 8.25R16 | H/16 | 128/124L | 16.0 | 6.50H | 865 | 235 | 1800 | 3970 | 770 | 112 | 1600 | 3525 | 770 | 112 |
| 8.25R20 | H/16 | 139/137K | 14.0 | 6.5 | 974 | 236 | 2430 | 5360 | 930 | 135 | 2300 | 5070 | 930 | 135 |
| 9.00R20 | H/16 | 144/142K | 16.0 | 7.0 | 1019 | 259 | 2800 | 6175 | 900 | 130 | 2650 | 5840 | 900 | 130 |
| 10.00R20 | H/16 | 146/143K | 15.0 | 7.5 | 1054 | 278 | 3000 | 6610 | 830 | 120 | 2725 | 6005 | 830 | 120 |
| 10.00R20 | J/18 | 149/146J | 15.0 | 7.5 | 1054 | 278 | 3250 | 7160 | 930 | 135 | 3000 | 6610 | 930 | 135 |
| 11.00R20 | J/18 | 152/149K | 16.0 | 8.0 | 1085 | 293 | 3550 | 7825 | 930 | 135 | 3250 | 7165 | 930 | 135 |
| 12.00R20 | J/18 | 154/151K | 17.0 | 8.5 | 1125 | 315 | 3750 | 8270 | 830 | 120 | 3450 | 7610 | 830 | 120 |
| 215/75R17.5 | H/16 | 135/133J | 13.0 | 6.00 | 767 | 211 | 2180 | 4805 | 850 | 123 | 2060 | 4540 | 850 | 123 |
| 225/80R17.5 | 10PR | 123/122L | 14.0 | 6.75 | 805 | 226 | 1550 | 3415 | 700 | 102 | 1500 | 3305 | 700 | 102 |
| 8R22.5 | G/14 | 130/128M | 13.5 | 6.00 | 935 | 203 | 1900 | 4190 | 830 | 120 | 1800 | 3970 | 830 | 120 |
| 9R22.5 | G/14 | 136/134M | 14.0 | 6.75 | 974 | 229 | 2240 | 4940 | 830 | 120 | 2120 | 4675 | 830 | 120 |
| 10R22.5 | H/16 | 144/142M | 15.0 | 7.50 | 1019 | 254 | 2800 | 6175 | 900 | 130 | 2650 | 5840 | 900 | 130 |
| 11R22.5 | G/14 | 144/142M | 17.5 | 8.25 | 1054 | 279 | 2800 | 6175 | 720 | 105 | 2650 | 5840 | 720 | 105 |
| 11R22.5 | H/16 | 148/145L | 17.5 | 8.25 | 1054 | 279 | 3150 | 6940 | 850 | 123 | 2900 | 6390 | 850 | 123 |
| 12R22.5 | J/18 | 152/149L | 18.0 | 9.00 | 1085 | 300 | 3550 | 7830 | 930 | 135 | 3250 | 7160 | 930 | 135 |
| 13R22.5 | J/18 | 156/150K | 20.0 | 9.75 | 1124 | 320 | 4000 | 8820 | 875 | 128 | 3350 | 7390 | 875 | 128 |
| 255/70R22.5 | H/16 | 140/137L | 15.0 | 7.50 | 930 | 255 | 2500 | 5510 | 830 | 120 | 2300 | 5070 | 830 | 120 |
| 275/70R22.5 | H/16 | 148/145K | 16.0 | 8.25 | 958 | 276 | 3150 | 6940 | 900 | 130 | 2900 | 6395 | 900 | 130 |
| 295/80R22.5 | H/16 | 150/147M | 18.0 | 9.00 | 1044 | 298 | 3350 | 7390 | 830 | 120 | 3075 | 6780 | 830 | 120 |
| 295/80R22.5 | J/18 | 152/149M | 18.0 | 9.00 | 1044 | 298 | 3550 | 7830 | 900 | 131 | 3250 | 7160 | 900 | 131 |
| 315/80R22.5 | J/18 | 154/151M(156/150L) | 18.0 | 9.00 | 1082 | 312 | 3750 | 8270 | 830 | 120 | 3450 | 7610 | 830 | 120 |
| 315/80R22.5 | L/20 | 157/154K | 18.0 | 9.00 | 1082 | 312 | 4125 | 9090 | 900 | 130 | 3750 | 8270 | 900 | 130 |
| 315/80R22.5 | M/22 | 164/158K | 18.0 | 9.00 | 1082 | 312 | 5000 | 11000 | 950 | 138 | 4250 | 9370 | 950 | 138 |
