Description

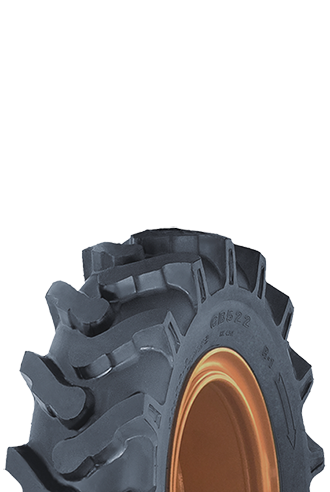

CB522
| Size | TRA Code |
Ply Rating |
LUG# | Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure |
TT/TL | |
|---|---|---|---|---|---|---|---|---|---|---|
| (kg) | (kPa) | |||||||||
| 5.00-12 | 4 | 15.0 | 4.00E | 590 | 145 | 280 | 200 | TT | ||
| 6.00-129 (1714LUG) | C/6 | 24.0 | 4.50E | 640 | 165 | 405 | 250 | TT | ||
| 6.00-12 (2014LUG) | C/6 | 22.0 | 4.50E | 640 | 165 | 405 | 250 | TT | ||
