Description
Benefits and Features
-
Aggressive lug design with large blocks at tread center provides excellent traction and braking on rough roads with mud or gravel and is self-cleaning for ease of maintenance
-
Applicable in mining, logging, construction or rock and quarry operations with some very short on high-way use possible
-
Special tread compounds resist chipping and chunking in rugged off-road conditions

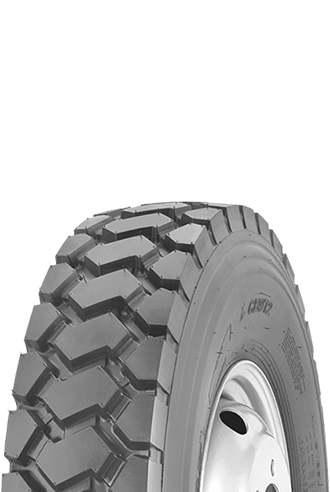

CB972
| Size | LR/PR | Service index |
Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | |||||||||||||
| (kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
| 8.25R16 | H/16 | 128/124J | 18.0 | 6.50H | 865 | 225 | 1800 | 3970 | 770 | 112 | 1600 | 3525 | 770 | 112 |
| 9.00R20 | H/16 | 144/142F | 22.0 | 7.0 | 1019 | 259 | 2800 | 6175 | 900 | 130 | 2650 | 5840 | 900 | 130 |
| 10.00R20 | H/16 | 146/143F | 24.0 | 7.5 | 1065 | 278 | 3000 | 6610 | 830 | 120 | 2725 | 6005 | 830 | 120 |
| 10.00R20 | J/18 | 149/146F | 24.0 | 7.5 | 1065 | 278 | 3250 | 7160 | 930 | 135 | 3000 | 6610 | 930 | 135 |
| 11.00R20 | J/18 | 152/149F | 24.5 | 8.0 | 1096 | 293 | 3550 | 7825 | 930 | 135 | 3250 | 7165 | 930 | 135 |
| 12.00R20 | J/18 | 154/151F | 25.5 | 8.5 | 1136 | 315 | 3750 | 8270 | 830 | 120 | 3450 | 7610 | 830 | 120 |
| 12.00R24 | L/20 | 160/157C | 25.0 | 8.5 | 1226 | 315 | 4500 | 9920 | 900 | 131 | 4125 | 9090 | 900 | 131 |
| 11R22.5 | G/14 | 144/142G | 23.0 | 8.25 | 1065 | 279 | 2800 | 6175 | 720 | 105 | 2650 | 5840 | 720 | 105 |
| 11R22.5 | H/16 | 148/145J | 23.0 | 8.25 | 1065 | 279 | 3150 | 6940 | 850 | 123 | 2900 | 6390 | 850 | 123 |
| 12R22.5 | J/18 | 152/149F | 24.5 | 9.00 | 1096 | 300 | 3550 | 7830 | 930 | 135 | 3250 | 7160 | 930 | 135 |
| 275/70R22.5 | H/16 | 148/145J | 20.0 | 8.25 | 964 | 276 | 3150 | 6940 | 900 | 130 | 2900 | 6395 | 900 | 130 |
| 295/80R22.5 | H/16 | 150/147K | 21.0 | 9.00 | 1050 | 298 | 3350 | 7390 | 830 | 120 | 3075 | 6780 | 830 | 120 |
| 295/80R22.5 | J/18 | 152/149J | 21.0 | 9.00 | 1050 | 298 | 3550 | 7830 | 900 | 131 | 3250 | 7160 | 900 | 131 |
| 11R24.5 | G/14 | 146/143F | 23.0 | 8.25 | 1116 | 279 | 3000 | 6610 | 720 | 105 | 2725 | 6005 | 720 | 105 |
| 11R24.5 | H/16 | 149/146F | 23.0 | 8.25 | 1116 | 279 | 3250 | 7160 | 830 | 120 | 3000 | 6610 | 830 | 120 |
