Description
Benefits and Features
-
Continuous central design ensures driving stability and smooth ride
-
The central siped zig-zag rib ensures even wear and grip on wet and muddy surface
-
Enhanced durability over rough road with good on-road performance

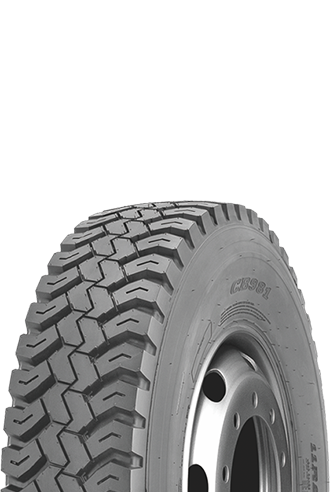

CB981
| Size | LR/PR | Service index |
Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | |||||||||||||
| (kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
| 6.50R16 | G/14 | 110/105J | 10.0 | 5.50F | 750 | 185 | 1060 | 2335 | 670 | 97 | 925 | 2040 | 670 | 97 |
| 7.00R16 | H/16 | 118/114J | 14.0 | 5.50F | 785 | 200 | 1320 | 2910 | 770 | 112 | 1180 | 2600 | 770 | 112 |
| 7.50R16 | G/14 | 122/118L | 16.0 | 6.00G | 815 | 215 | 1500 | 3305 | 770 | 112 | 1320 | 2910 | 770 | 112 |
| 8.25R16 | G/14 | 128/126L | 16.5 | 6.50H | 865 | 235 | 1800 | 3970 | 670 | 97 | 1700 | 3750 | 670 | 97 |
| 8.25R16 | H/16 | 128/124L | 16.5 | 6.50H | 865 | 235 | 1800 | 3970 | 770 | 112 | 1600 | 3525 | 770 | 112 |
| 8.25R20 | H/16 | 139/137K | 17.0 | 6.5 | 974 | 236 | 2430 | 5360 | 930 | 135 | 2300 | 5070 | 930 | 135 |
| 9.00R20 | H/16 | 144/142K | 18.0 | 7.0 | 1019 | 259 | 2800 | 6175 | 900 | 130 | 2650 | 5840 | 900 | 130 |
| 10.00R20 | H/16 | 146/143K | 19.5 | 7.5 | 1054 | 278 | 3000 | 6610 | 830 | 120 | 2725 | 6005 | 830 | 120 |
| 10.00R20 | J/18 | 149/146J | 19.5 | 7.5 | 1054 | 278 | 3250 | 7160 | 930 | 135 | 3000 | 6610 | 930 | 135 |
| 11.00R20 | J/18 | 152/149J | 20.5 | 8.0 | 1085 | 293 | 3550 | 7825 | 930 | 135 | 3250 | 7165 | 930 | 135 |
| 12.00R20 | J/18 | 154/151K | 20.5 | 8.5 | 1125 | 315 | 3750 | 8270 | 830 | 120 | 3450 | 7610 | 830 | 120 |
| 11R22.5 | G/14 | 144/142L | 19.6 | 8.25 | 1065 | 279 | 2800 | 6175 | 720 | 105 | 2650 | 5840 | 720 | 105 |
| 11R22.5 | H/16 | 148/145L | 19.6 | 8.25 | 1065 | 279 | 3150 | 6940 | 850 | 123 | 2900 | 6390 | 850 | 123 |
| 120 |
