Description
Benefits and Features
-
Designed to provide exceptional Performance and Life in Linehaul Drive applications
-
Large block design helps enhance handling and traction on all season highway conditions
-
Tread bars maintain an even footprint and help prevent tyre squirm
-
Cool running compound to promote longer life, Great CPK (Cost Per Kilometer) performer

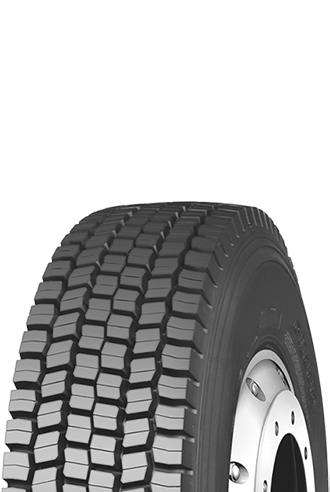

CM335
| Size | LR/PR | Service index |
Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | |||||||||||||
| (kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
| 495/45R22.5 | L/20 | 169K | 19.0 | 17.0 | 1018 | 500 | 5800 | 12800 | 900 | 130 | - | - | - | - |
| 11.00R20 | J/18 | 152/149K | 20.0 | 8.0 | 1085 | 293 | 3550 | 7825 | 930 | 135 | 3250 | 7165 | 930 | 135 |
| 12.00R20 | J/18 | 154/151K | 21.0 | 8.5 | 1125 | 315 | 3750 | 8270 | 830 | 120 | 3450 | 7610 | 830 | 120 |
| 11R22.5 | G/14 | 144/142M | 20.6 | 8.25 | 1065 | 279 | 2800 | 6175 | 720 | 105 | 2650 | 5840 | 720 | 105 |
| 11R22.5 | H/16 | 148/145M | 20.6 | 8.25 | 1065 | 279 | 3150 | 6940 | 850 | 123 | 2900 | 6390 | 850 | 123 |
| 295/60R22.5 | J/18 | 150/147K | 19.0 | 9.00 | 926 | 292 | 3350 | 7390 | 900 | 131 | 3075 | 6780 | 900 | 131 |
| 315/60R22.5 | L/20 | 154/150L(152/148M) | 18.0 | 9.75 | 950 | 313 | 3750 | 8270 | 900 | 130 | 3350 | 7390 | 900 | 130 |
| 315/70R22.5 | L/20 | 154/150L | 18.0 | 9.00 | 1020 | 312 | 3750 | 8270 | 900 | 130 | 3350 | 7390 | 900 | 130 |
| 315/80R22.5 | J/18 | 154/151M(156/150L) | 20.6 | 9.00 | 1082 | 312 | 3750 | 8270 | 830 | 120 | 3450 | 7610 | 830 | 120 |
| 315/80R22.5 | L/20 | 157/154K | 20.6 | 9.00 | 1082 | 312 | 4125 | 9090 | 900 | 130 | 3750 | 8270 | 900 | 130 |
