Description
Benefits and Features
-
Drive axle tyre applicable for mud and sand terrain with short on high-way use
-
Wide tread and open shoulder blocks help enhance traction and braking on rough roads with mud or gravel
-
Special tread compounds resist chipping, chunking and tearing

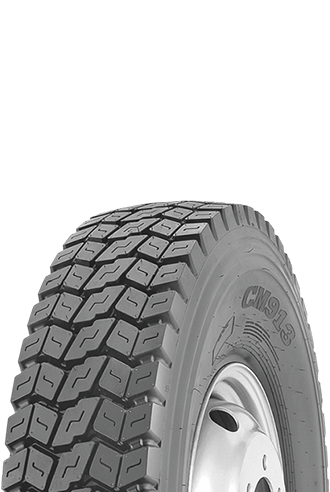

CM913A
Size | LR/PR | Service index |
Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Single | Dual | |||||||||||||
(kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
7.00R16 | G/14 | 122/118L | 16.0 | 6.00G | 815 | 215 | 1500 | 3305 | 770 | 112 | 1320 | 2910 | 770 | 112 |
8.25R20 | H/16 | 139/137K | 16.5 | 6.5 | 974 | 236 | 2430 | 5360 | 930 | 135 | 2300 | 5070 | 930 | 135 |
9.00R20 | H/16 | 144/142K | 20.0 | 7.0 | 1019 | 259 | 2800 | 6175 | 900 | 130 | 2650 | 5840 | 900 | 130 |
10.00R20 | H/16 | 146/143K | 20.0 | 7.5 | 1054 | 278 | 3000 | 6610 | 830 | 120 | 2725 | 6005 | 830 | 120 |
10.00R20 | J/18 | 149/146J | 20.0 | 7.5 | 1054 | 278 | 3250 | 7160 | 930 | 135 | 3000 | 6610 | 930 | 135 |
11.00R20 | J/18 | 152/149J | 20.6 | 8.0 | 1085 | 293 | 3550 | 7825 | 930 | 135 | 3250 | 7165 | 930 | 135 |
12.00R20 | J/18 | 154/151K | 22.0 | 8.5 | 1125 | 315 | 3750 | 8270 | 830 | 120 | 3450 | 7610 | 830 | 120 |
12.00R20 | L/20 | 156/153J | 22.0 | 8.5 | 1125 | 315 | 4000 | 8820 | 900 | 131 | 3650 | 8050 | 900 | 131 |
