Description
Benefits and Features
-
Wide and deep tread helps to promote even wear and long tread life resulting in low cost per mile
-
Solid close shoulder ribs help to improve even wear
-
Three deep grooves evacuate water efficiently for traction
-
Strong casing resists cuts and punctures for enhanced toughness and long casing life

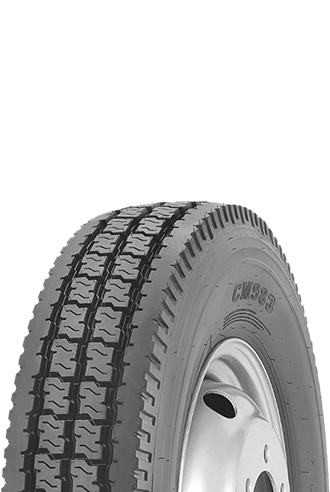

CM983
| Size | LR/PR | Service index |
Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | |||||||||||||
| (kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
| 10.00R20 | H/16 | 146/143K | 18.0 | 7.5 | 1054 | 278 | 3000 | 6610 | 830 | 120 | 2725 | 6005 | 830 | 120 |
| 10.00R20 | J/18 | 149/146J | 18.0 | 7.5 | 1054 | 278 | 3250 | 7160 | 930 | 135 | 3000 | 6610 | 930 | 135 |
| 225/70R19.5 | G/14 | 128/126L | 15.5 | 6.75 | 811 | 226 | 1800 | 3970 | 760 | 110 | 1700 | 3750 | 760 | 110 |
| 11R22.5 | G/14 | 144/142L | 20.6 | 8.25 | 1065 | 279 | 2800 | 6175 | 720 | 105 | 2650 | 5840 | 720 | 105 |
| 11R22.5 | H/16 | 148/145L | 20.6 | 8.25 | 1065 | 279 | 3150 | 6940 | 850 | 123 | 2900 | 6390 | 850 | 123 |
| 295/75R22.5 | G/14 | 144/141L | 20.6 | 9.00 | 1020 | 298 | 2800 | 6175 | 760 | 110 | 2575 | 5675 | 760 | 110 |
| 11R24.5 | G/14 | 146/143L | 20.6 | 8.25 | 1116 | 279 | 3000 | 6610 | 720 | 105 | 2725 | 6005 | 720 | 105 |
| 11R24.5 | H/16 | 149/146L | 20.6 | 8.25 | 1116 | 279 | 3250 | 7160 | 830 | 120 | 3000 | 6610 | 830 | 120 |
| 285/75R24.5 | G/14 | 144/141L | 20.6 | 8.25 | 1056 | 283 | 2800 | 6175 | 760 | 110 | 2575 | 5675 | 760 | 110 |
