Description
Benefits and Features
-
Non-directional tread design for easy operating
-
Open lug design helps provide traction in wet or snowy conditions

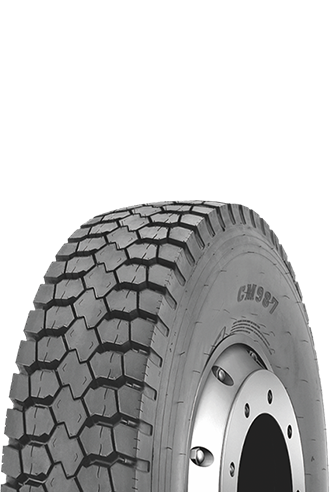

CM987
| Size | LR/PR | Service index |
Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | |||||||||||||
| (kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
| 8.25R16 | H/16 | 128/124L | 14.0 | 6.50H | 855 | 235 | 1800 | 3969 | 770 | 111 | 1600 | 3529 | 770 | 111 |
| 9.00R16 | G/14 | 131/126L | 15.0 | 6.50H | 900 | 255 | 1950 | 4300 | 670 | 97 | 1700 | 3750 | 670 | 97 |
| 9.00R20 | H/16 | 144/142K | 16.0 | 7.0 | 1019 | 259 | 2800 | 6175 | 900 | 130 | 2650 | 5840 | 900 | 130 |
| 10.00R20 | H/16 | 146/143K | 17.0 | 7.5 | 1054 | 278 | 3000 | 6610 | 830 | 120 | 2725 | 6005 | 830 | 120 |
| 10.00R20 | J/18 | 149/146J | 17.0 | 7.5 | 1054 | 278 | 3250 | 7160 | 930 | 135 | 3000 | 6610 | 930 | 135 |
| 11.00R20 | J/18 | 152/149K | 18.0 | 8.0 | 1085 | 293 | 3550 | 7825 | 930 | 135 | 3250 | 7165 | 930 | 135 |
| 12.00R20 | J/18 | 154/151K | 19.0 | 8.5 | 1125 | 315 | 3750 | 8270 | 830 | 120 | 3450 | 7610 | 830 | 120 |
| 12.00R20 | L/20 | 156/153J | 19.0 | 8.5 | 1125 | 315 | 4000 | 8820 | 900 | 131 | 3650 | 8050 | 900 | 131 |
| 11R22.5 | G/14 | 144/142L | 20.6 | 8.25 | 1065 | 279 | 2800 | 6175 | 720 | 105 | 2650 | 5840 | 720 | 105 |
| 11R22.5 | H/16 | 148/145L | 20.6 | 8.25 | 1065 | 279 | 3150 | 6940 | 850 | 123 | 2900 | 6390 | 850 | 123 |
| 11R22.5 | J/18 | 149/146L | 20.6 | 8.25 | 1054 | 279 | 3250 | 7160 | 930 | 135 | 3000 | 6610 | 930 | 135 |
| 12R22.5 | J/18 | 152/149L | 18.0 | 9.00 | 1085 | 300 | 3550 | 7830 | 930 | 135 | 3250 | 7160 | 930 | 135 |
| 11R24.5 | G/14 | 146/143L | 20.6 | 8.25 | 1116 | 279 | 3000 | 6610 | 720 | 105 | 2725 | 6005 | 720 | 105 |
| 11R24.5 | H/16 | 149/146L | 20.6 | 8.25 | 1116 | 279 | 3250 | 7160 | 830 | 120 | 3000 | 6610 | 830 | 120 |
