Description
Benefits and Features
-
3 circumferential grooves ensures good directional stability, even wear and smooth ride
-
Heavy siping provides good braking stability and high lateral traction on wet and dry surface
-
Improved tread compound helps resist tears and ensure good mileage in on and off road use
-
Sidewall reinforcing ribs protects against impacts and scuffing

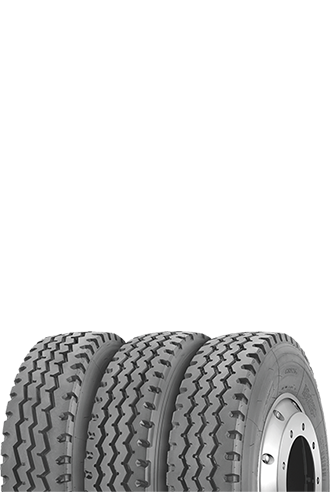

CR926/B/D
| Size | LR/PR | Service index |
Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | |||||||||||||
| (kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
| 6.50R16(CR926) | F/12 | 110/105L | 9.5 | 5.50F | 750 | 185 | 1060 | 2335 | 670 | 97 | 925 | 2040 | 670 | 97 |
| 7.00R16(CR926) | G/14 | 118/114M | 11.0 | 5.50F | 775 | 200 | 1320 | 2910 | 770 | 112 | 1180 | 2600 | 770 | 112 |
| 7.50R16(CR926) | G/14 | 122/118L | 12.0 | 6.00G | 805 | 215 | 1500 | 3305 | 770 | 112 | 1320 | 2910 | 770 | 112 |
| 8.25R16(CR926) | G/14 | 128/126L | 14.0 | 6.50H | 855 | 235 | 1800 | 3970 | 670 | 97 | 1700 | 3750 | 670 | 97 |
| 8.25R16(CR926) | H/16 | 128/124L | 14.0 | 6.50H | 855 | 235 | 1800 | 3970 | 770 | 112 | 1600 | 3525 | 770 | 112 |
| 7.50R20(CR926) | G/14 | 130/128L | 14.0 | 6.0 | 935 | 215 | 1900 | 4190 | 830 | 120 | 1800 | 3970 | 830 | 120 |
| 8.25R20(CR926) | H/16 | 139/137K | 15.0 | 6.5 | 974 | 236 | 2430 | 5360 | 930 | 135 | 2300 | 5070 | 930 | 135 |
| 9.00R20(CR926) | H/16 | 144/142K | 15.5 | 7.0 | 1019 | 259 | 2800 | 6175 | 900 | 130 | 2650 | 5840 | 900 | 130 |
| 10.00R20(CR926) | H/16 | 146/143K | 16.0 | 7.5 | 1054 | 278 | 3000 | 6610 | 830 | 120 | 2725 | 6005 | 830 | 120 |
| 10.00R20(CR926) | J/18 | 149/146J | 16.0 | 7.5 | 1054 | 278 | 3250 | 7160 | 930 | 135 | 3000 | 6610 | 930 | 135 |
| 11.00R20(CR926) | J/18 | 152/149K | 16.0 | 8.0 | 1085 | 293 | 3550 | 7825 | 930 | 135 | 3250 | 7165 | 930 | 135 |
| 12.00R20(CR926) | J/18 | 154/151K | 17.5 | 8.5 | 1125 | 315 | 3750 | 8270 | 830 | 120 | 3450 | 7610 | 830 | 120 |
| 12.00R20(CR926) | L/20 | 156/153J | 17.5 | 8.5 | 1125 | 315 | 4000 | 8820 | 900 | 131 | 3650 | 8050 | 900 | 131 |
| 12.00R24(CR926) | L/20 | 160/157K | 16.0 | 8.5 | 1226 | 315 | 4500 | 9920 | 900 | 131 | 4125 | 9090 | 900 | 131 |
| 12.00R24(CR926B) | L/20 | 160/157K | 19.0 | 8.5 | 1226 | 315 | 4500 | 9920 | 900 | 131 | 4125 | 9090 | 900 | 131 |
| 325/95R24(CR926B) | M/22 | 162/160K | 19.0 | 9.0 | 1228 | 325 | 4750 | 10470 | 850 | 123 | 4500 | 9920 | 850 | 123 |
| 11R22.5(CR926D) | G/14 | 144/142M | 16.8 | 8.25 | 1054 | 279 | 2800 | 6175 | 720 | 105 | 2650 | 5840 | 720 | 105 |
| 11R22.5(CR926D) | H/16 | 148/145M | 16.8 | 8.25 | 1054 | 279 | 3150 | 6940 | 850 | 123 | 2900 | 6390 | 850 | 123 |
| 11R22.5(CR926D) | J/18 | 149/146L | 16.8 | 8.25 | 1054 | 279 | 3250 | 7160 | 930 | 135 | 3000 | 6610 | 930 | 135 |
| 12R22.5(CR926) | J/18 | 152/149L | 16.0 | 9.00 | 1085 | 300 | 3550 | 7830 | 930 | 135 | 3250 | 7160 | 930 | 135 |
| 13R22.5(CR926) | J/18 | 156/151K | 16.0 | 9.75 | 1124 | 320 | 4000 | 8820 | 875 | 128 | 3450 | 7610 | 875 | 128 |
| 255/70R22.5(CR926D) | H/16 | 140/137L | 14.2 | 7.50 | 930 | 255 | 2500 | 5510 | 830 | 120 | 2300 | 5070 | 830 | 120 |
| 295/80R22.5(CR926D) | H/16 | 150/147M | 16.0 | 9.00 | 1044 | 298 | 3350 | 7390 | 830 | 120 | 3075 | 6780 | 830 | 120 |
| 295/80R22.5(CR926D) | J/18 | 152/149L | 16.0 | 9.00 | 1044 | 298 | 3550 | 7830 | 900 | 131 | 3250 | 7160 | 900 | 131 |
| 315/80R22.5(CR926B) | J/18 | 154/151M(156/150L) | 16.5 | 9.00 | 1076 | 312 | 3750 | 8270 | 830 | 120 | 3450 | 7610 | 830 | 120 |
| 315/80R22.5(CR926B) | L/20 | 157/154K | 16.5 | 9.00 | 1076 | 312 | 4125 | 9090 | 900 | 130 | 3750 | 8270 | 900 | 130 |
| 11R24.5(CR926D) | G/14 | 146/143L | 16.8 | 8.25 | 1104 | 279 | 3000 | 6610 | 720 | 105 | 2725 | 6005 | 720 | 105 |
| 11R24.5(CR926D) | H/16 | 149/146L | 16.8 | 8.25 | 1104 | 279 | 3250 | 7160 | 830 | 120 | 3000 | 6610 | 830 | 120 |
| 12R24.5(CR926D) | J/18 | 154/151L | 17.0 | 9.00 | 1147 | 300 | 3750 | 8270 | 930 | 135 | 3450 | 7610 | 930 | 135 |
