Description
Benefits and Features
-
Wider tread spreads load over a larger area, promoting long, even wear in steer and free-rolling wheel position
-
Straight simple rib pattern improves even wearing and efficient water evacuation for excellent wet traction and handling
-
Cross rib sipes slice through water for solid control on wet roads
-
Decoupling tread design suitable for long-distance travel

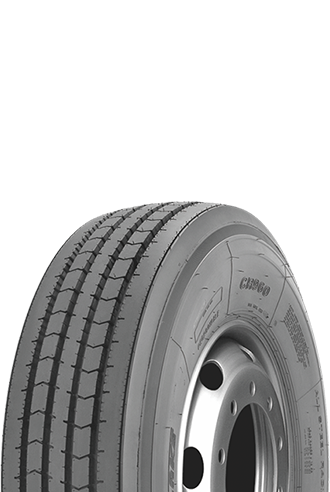

CR960
| Size | LR/PR | Service index |
Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | |||||||||||||
| (kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
| 11R22.5 | G/14 | 144/142L | 14.2 | 8.25 | 1054 | 279 | 2800 | 6175 | 720 | 105 | 2650 | 5840 | 720 | 105 |
| 11R22.5 | H/16 | 148/145M | 14.2 | 8.25 | 1054 | 279 | 3150 | 6940 | 850 | 123 | 2900 | 6390 | 850 | 123 |
| 295/80R22.5 | H/16 | 150/147M | 15.0 | 9.00 | 1044 | 298 | 3350 | 7390 | 830 | 120 | 3075 | 6780 | 830 | 120 |
| 295/80R22.5 | J/18 | 152/149M | 15.0 | 9.00 | 1044 | 298 | 3550 | 7830 | 900 | 131 | 3250 | 7160 | 900 | 131 |
| 315/80R22.5 | J/18 | 154/151M(156/150L) | 15.0 | 9.00 | 1076 | 312 | 3750 | 8270 | 830 | 120 | 3450 | 7610 | 830 | 120 |
| 315/80R22.5 | L/20 | 157/154K | 15.0 | 9.00 | 1076 | 312 | 4125 | 9090 | 900 | 130 | 3750 | 8270 | 900 | 130 |
| 11R24.5 | G/14 | 146/143L | 14.2 | 8.25 | 1104 | 279 | 3000 | 6610 | 720 | 105 | 2725 | 6005 | 720 | 105 |
| 11R24.5 | H/16 | 149/146L | 14.2 | 8.25 | 1104 | 279 | 3250 | 7160 | 830 | 120 | 3000 | 6610 | 830 | 120 |
