Description
Benefits and Features
-
Five ribs with four wide, straight grooves for precise handling and outstanding traction
-
Stone rejector platforms prevent stones from lodging in grooves and drilling into belts
-
Shallower tread depth helps to resist tread squirm and irregular wear forces for exceptionally long mileage

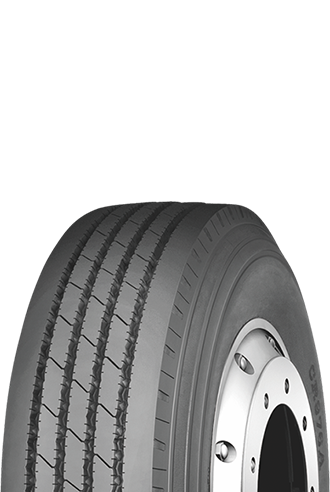

CR976A
| Size | LR/PR | Service index |
Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | |||||||||||||
| (kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
| 385/65R22.5 | J/18 | 158L(160K) | 15.5 | 11.75 | 1072 | 389 | 4250 | 9370 | 850 | 125 | - | - | - | - |
| 385/65R22.5 | L/20 | 160K(158L) | 15.5 | 11.75 | 1072 | 389 | 4500 | 9920 | 900 | 130 | - | - | - | - |
| 425/65R22.5 | L/20 | 165K | 15.0 | 12.25 | 1124 | 430 | 5150 | 11340 | 830 | 120 | - | - | - | - |
| 445/65R22.5 | L/20 | 169K | 15.0 | 13.00 | 1150 | 444 | 5800 | 12775 | 900 | 130 | - | - | - | - |
| 9.00R20 | H/16 | 144/142K | 14.5 | 7.0 | 1019 | 259 | 2800 | 6175 | 900 | 130 | 2650 | 5840 | 900 | 130 |
| 10.00R20 | H/16 | 146/143K | 15.0 | 7.5 | 1054 | 278 | 3000 | 6610 | 830 | 120 | 2725 | 6005 | 830 | 120 |
| 10.00R20 | J/18 | 149/146J | 15.0 | 7.5 | 1054 | 278 | 3250 | 7160 | 930 | 135 | 3000 | 6610 | 930 | 135 |
| 11.00R20 | J/18 | 152/149K | 15.5 | 8.0 | 1085 | 293 | 3550 | 7825 | 930 | 135 | 3250 | 7165 | 930 | 135 |
| 12.00R20 | J/18 | 154/151K | 17.0 | 8.5 | 1125 | 315 | 3750 | 8270 | 830 | 120 | 3450 | 7610 | 830 | 120 |
| 12.00R20 | L/20 | 156/153J | 17.0 | 8.5 | 1125 | 315 | 4000 | 8820 | 900 | 131 | 3650 | 8050 | 900 | 131 |
| 215/75R17.5 | H/16 | 135/133J | 12.5 | 6.00 | 767 | 211 | 2180 | 4805 | 850 | 123 | 2060 | 4540 | 850 | 123 |
| 225/70R19.5 | G/14 | 128/126M | 13.0 | 6.75 | 811 | 226 | 1800 | 3970 | 760 | 110 | 1700 | 3750 | 760 | 110 |
| 245/70R19.5 | G/14 | 133/131M | 13.0 | 7.50 | 839 | 248 | 2060 | 4540 | 760 | 110 | 1950 | 4300 | 760 | 110 |
| 245/70R19.5 | H/16 | 136/134M | 13.0 | 7.50 | 839 | 248 | 2240 | 4940 | 830 | 120 | 2120 | 4675 | 830 | 120 |
| 265/70R19.5 | H/16 | 140/138M | 14.0 | 7.50 | 867 | 262 | 2500 | 5510 | 775 | 112 | 2360 | 5200 | 775 | 112 |
| 265/70R19.5 | J/18 | 143/141J | 14.0 | 7.50 | 867 | 262 | 2725 | 6005 | 850 | 123 | 2575 | 5675 | 850 | 123 |
| 11R22.5 | G/14 | 144/142M | 15.5 | 8.25 | 1054 | 279 | 2800 | 6175 | 720 | 105 | 2650 | 5840 | 720 | 105 |
| 11R22.5 | H/16 | 148/145M | 15.5 | 8.25 | 1054 | 279 | 3150 | 6940 | 850 | 123 | 2900 | 6390 | 850 | 123 |
| 11R22.5 | J/18 | 149/146L | 15.5 | 8.25 | 1054 | 279 | 3250 | 7160 | 930 | 135 | 3000 | 6610 | 930 | 135 |
| 12R22.5 | J/18 | 152/149L | 15.5 | 9.00 | 1085 | 300 | 3550 | 7830 | 930 | 135 | 3250 | 7160 | 930 | 135 |
| 255/70R22.5 | H/16 | 140/137M | 14.5 | 7.50 | 930 | 255 | 2500 | 5510 | 830 | 120 | 2300 | 5070 | 830 | 120 |
| 275/70R22.5 | H/16 | 148/145M | 14.0 | 8.25 | 958 | 276 | 3150 | 6940 | 900 | 130 | 2900 | 6395 | 900 | 130 |
| 275/80R22.5 | H/16 | 149/146M | 14.0 | 8.25 | 1012 | 276 | 3250 | 7165 | 850 | 123 | 3000 | 6610 | 850 | 123 |
| 295/80R22.5 | H/16 | 150/147M | 15.0 | 9.00 | 1044 | 298 | 3350 | 7390 | 830 | 120 | 3075 | 6780 | 830 | 120 |
| 295/80R22.5 | J/18 | 152/149M | 15.0 | 9.00 | 1044 | 298 | 3550 | 7830 | 900 | 131 | 3250 | 7160 | 900 | 131 |
| 315/80R22.5 | J/18 | 154/151M(156/150L) | 16.0 | 9.00 | 1076 | 312 | 3750 | 8270 | 830 | 120 | 3450 | 7610 | 830 | 120 |
| 315/80R22.5 | L/20 | 157/154K | 16.0 | 9.00 | 1076 | 312 | 4125 | 9090 | 900 | 130 | 3750 | 8270 | 900 | 130 |
