Description
Benefits and Features
-
Applicable for drive axle on unpaved road
-
Robust tread block provide outstanding traction on sand and mud road surface
-
Special groove design with stone rejector prevent from stone penetration
-
Durable tyre carcass and improved tread compound help to resist chipping and chunking for longer tyre life

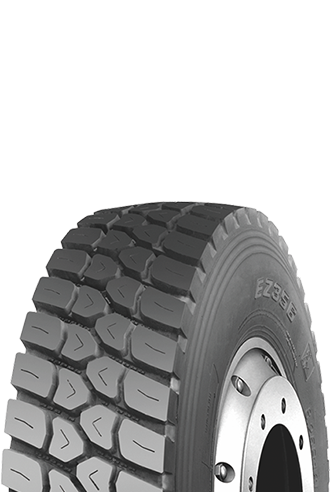

EZ356
| Size | LR/PR | Service index |
Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | |||||||||||||
| (kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
| 8.25R16 | H/16 | 128/124J | 16.0 | 6.50H | 865 | 235 | 1800 | 3970 | 770 | 112 | 1600 | 3525 | 770 | 112 |
| 12.00R20 | J/18 | 154/151F | 24.0 | 8.5 | 1136 | 315 | 3750 | 8270 | 830 | 120 | 3450 | 7610 | 830 | 120 |
| 12.00R20 | L/20 | 156/153C | 24.0 | 8.5 | 1136 | 315 | 4000 | 8820 | 900 | 131 | 3650 | 8050 | 900 | 131 |
