Description
Benefits and Features
-
Aggressive multi-service, all position tread pattern promises excellent traction in ON/OFF road service
-
Outstanding self-cleaning tread design ensures long-life service in ON/OFF road conditions
-
Robust tread blocks and rugged casing allows for heavy loads and resist casing penetration and damage

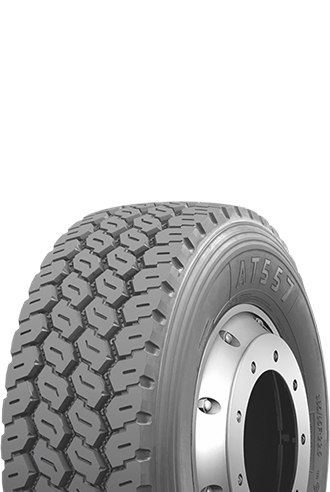

AT557
| Size | LR/PR | Service index |
Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | |||||||||||||
| (kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
| 385/65R22.5 | J/18 | 158L(160K) | 18.0 | 11.75 | 1072 | 389 | 4250 | 9370 | 850 | 125 | - | - | - | - |
| 385/65R22.5 | L/20 | 160K(158L) | 18.0 | 11.75 | 1072 | 389 | 4500 | 9920 | 900 | 130 | - | - | - | - |
| 425/65R22.5 | L/20 | 165K | 18.0 | 12.25 | 1124 | 430 | 5150 | 11340 | 830 | 120 | - | - | - | - |
| 445/65R22.5 | L/20 | 169K | 18.0 | 13.00 | 1150 | 444 | 5800 | 12775 | 900 | 130 | - | - | - | - |
| 265/70R19.5 | J/18 | 143/141J | 16.5 | 7.50 | 867 | 262 | 2725 | 6005 | 850 | 123 | 2575 | 5675 | 850 | 123 |
| 12R22.5 | J/18 | 152/149L | 17.5 | 9.00 | 1085 | 300 | 3550 | 7830 | 930 | 135 | 3250 | 7160 | 930 | 135 |
| 255/70R22.5 | H/16 | 140/137L | 17.5 | 7.50 | 936 | 255 | 2500 | 5510 | 830 | 120 | 2300 | 5070 | 830 | 120 |
| 275/70R22.5 | H/16 | 148/145L | 18.0 | 8.25 | 958 | 276 | 3150 | 6940 | 900 | 130 | 2900 | 6395 | 900 | 130 |
| 315/80R22.5 | J/18 | 154/151M(156/153L) | 17.5 | 9.00 | 1076 | 312 | 3750 | 8270 | 830 | 120 | 3450 | 7610 | 830 | 120 |
| 315/80R22.5 | L/20 | 157/154K | 17.5 | 9.00 | 1076 | 312 | 4125 | 9090 | 900 | 130 | 3750 | 8270 | 900 | 130 |
| 315/80R22.5 | M/22 | 164/158K | 17.5 | 9.00 | 1076 | 312 | 5000 | 11000 | 950 | 138 | 4250 | 9370 | 950 | 138 |
