Description
Benefits and Features
-
Brand new flagship tyre for on&off application with Less sidewall deformation and enhanced tyre life based on PSCT
-
Cutting resisttance compound helps resist chipping, chunking and tearing for a better mileage
-
Continuous center block pattern guarantee a stability driving in on&off road
-
Robust open shoulder provide outstanding traction and self-cleaning ability
-
Stone rejection design reduces stone retention and maximize casing durability

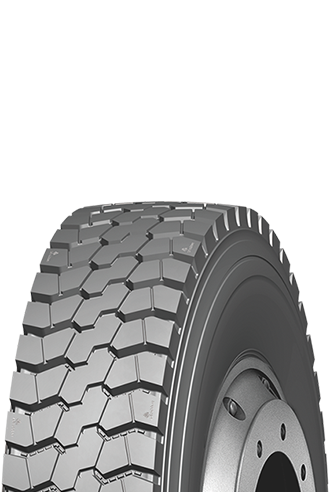

EZ865
| Size | LR/PR | Service index |
Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | |||||||||||||
| (kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
| 8.25R20 | H/16 | 139/137K | 16.0 | 6.5 | 974 | 236 | 2430 | 5360 | 930 | 135 | 2300 | 5070 | 930 | 135 |
| 9.00R20 | H/16 | 144/142K | 16.0 | 7.0 | 1019 | 259 | 2800 | 6175 | 900 | 130 | 2650 | 5840 | 900 | 130 |
| 10.00R20 | J/18 | 149/146J | 19.0 | 7.5 | 1054 | 278 | 3250 | 7160 | 930 | 135 | 3000 | 6610 | 930 | 135 |
| 11.00R20 | J/18 | 152/149K | 19.0 | 8.0 | 1085 | 293 | 3550 | 7825 | 930 | 135 | 3250 | 7165 | 930 | 135 |
| 12.00R20 | J/18 | 154/151K | 20.0 | 8.5 | 1136 | 315 | 3750 | 8270 | 830 | 120 | 3450 | 7610 | 830 | 120 |
| 12.00R20 | L/20 | 156/153J | 20.0 | 8.5 | 1136 | 315 | 4000 | 8820 | 900 | 131 | 3650 | 8050 | 900 | 131 |
| 12R22.5 | J/18 | 152/149K | 20.5 | 9.0 | 1085 | 300 | 3550 | 7830 | 930 | 135 | 3250 | 7160 | 930 | 135 |
