Description
Benefits and Features
-
Brand new flagship tyre for mining application with Enhanced tyre life and durability based on PSCT
-
Special mining compound helps resist chipping, chunking and tearing for a better mileage
-
Super robust bolck provide outstanding traction on off road surface
-
Centre tie bar design minimise longitudinal elongationand deformation
-
Stone ejector platforms prevent tread damage from stone drilling

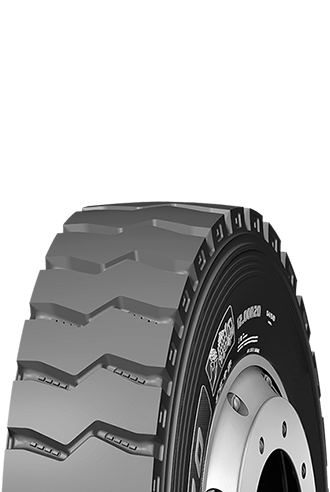

EZ870
| Size | LR/PR | Service index |
Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | |||||||||||||
| (kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
| 7.00R16 | H/16 | 128/124F | 19.0 | 6.50H | 865 | 235 | 1800 | 3970 | 770 | 112 | 1600 | 3525 | 770 | 112 |
| 9.00R20 | H/16 | 144/142F | 24.5 | 7.0 | 1019 | 259 | 2800 | 6175 | 900 | 130 | 2650 | 5840 | 900 | 130 |
| 10.00R20 | J/18 | 149/146D | 25.0 | 7.5 | 1065 | 278 | 3250 | 7160 | 930 | 135 | 3000 | 6610 | 930 | 135 |
| 11.00R20 | J/18 | 152/149D | 24.5 | 8.0 | 1096 | 293 | 3550 | 7825 | 930 | 135 | 3250 | 7165 | 930 | 135 |
| 12.00R20 | J/18 | 154/151F | 25.5 | 8.5 | 1136 | 315 | 3750 | 8270 | 830 | 120 | 3450 | 7610 | 830 | 120 |
| 12.00R20 | L/20 | 156/153F | 25.5 | 8.5 | 1136 | 315 | 4000 | 8820 | 900 | 131 | 3650 | 8050 | 900 | 131 |
| 12R22.5 | J/18 | 152/149F | 24.5 | 9.00 | 1096 | 300 | 3550 | 7830 | 930 | 135 | 3250 | 7160 | 930 | 135 |
| 13R22.5 | J/18 | 156/151D | 25.5 | 9.75 | 1136 | 320 | 4000 | 8820 | 875 | 128 | 3450 | 7610 | 875 | 128 |
