Description

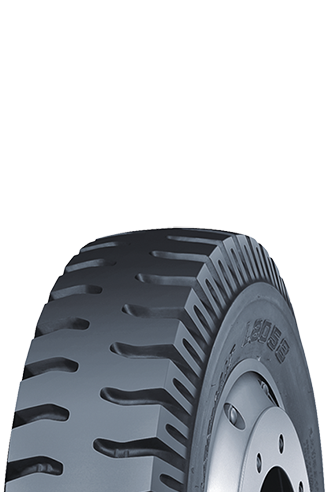

L8058
| Size | TRA Code |
Ply Rating |
LUG# | Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure |
TT/TL | |
|---|---|---|---|---|---|---|---|---|---|---|
| (kg) | (kPa) | |||||||||
| 4.00-12 | C/6 | 7.0 | 3.00D | 535 | 112 | 205 | 240 | TT | ||
| 4.00-14 | B/4 | 8.0 | 3.00D | 590 | 110 | 270 | 340 | TT | ||
| 4.00-14 | C/6 | 8.0 | 3.00D | 590 | 110 | 315 | 450 | TT | ||
| 5.00-14 | E/10 | 10.0 | 3.00D | 620 | 130 | 600 | 500 | TT | ||
