Description
Benefits and Features
-
Excellent traction for ON/OFF drive axle application
-
Aggressive and optimum self-cleaning tread with lateral grooves provides remarkable performance in all weather conditions both one and off the roads

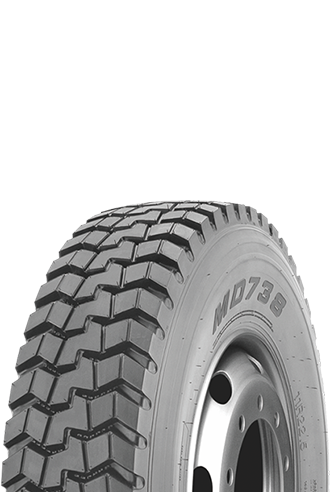

MD738A
| Size | LR/PR | Service index |
Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | |||||||||||||
| (kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
| 9.5R17.5 | G/14 | 129/127L | 15.0 | 6.75 | 842 | 240 | 1850 | 4080 | 750 | 109 | 1750 | 3860 | 750 | 109 |
| 9.5R17.5 | H/16 | 143/141J | 15.0 | 6.75 | 842 | 240 | 2725 | 6005 | 875 | 128 | 2575 | 5675 | 875 | 128 |
