Description
Benefits and Features
-
Wide open shoulder deliver additional traction without compromising tread life
-
Specific tread compound keep rubber softness in low temperature with good performance
-
Studable tread design provides extra traction for snow and ice road conditions

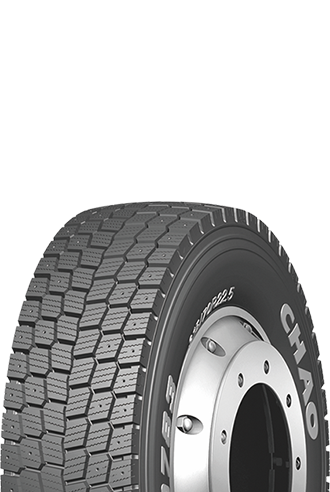

ND783
| Size | LR/PR | Service index |
Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | |||||||||||||
| (kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
| 295/80R22.5 | J/18 | 154/149L | 21.0 | 9.00 | 1050 | 298 | 3750 | 8270 | 900 | 131 | 3250 | 7160 | 900 | 131 |
| 315/70R22.5 | L/20 | 154/150K(152/148L) | 19.0 | 9.00 | 1020 | 312 | 3750 | 8250 | 900 | 130 | 3350 | 7390 | 900 | 130 |
| 315/80R22.5 | J/18 | 156/153K(154/151L) | 21.0 | 9.00 | 1082 | 312 | 4000 | 8820 | 850 | 123 | 3650 | 8050 | 850 | 123 |
| 315/80R22.5 | L/20 | 157/154J | 21.0 | 9.00 | 1082 | 312 | 4125 | 9090 | 900 | 130 | 3750 | 8270 | 900 | 130 |
