Description
Benefits and Features
-
Wide and deep circumferential grooves enhances removal of snow and ice
-
Specific tread compound keep rubber softness in low temperature with good performance
-
Wide tread with advanced block and sipe design provides extra traction for snow and ice road conditions

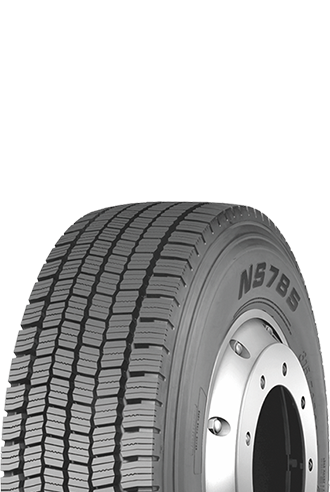

NS785
| Size | LR/PR | Service index |
Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | |||||||||||||
| (kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
| 385/55R22.5 | L/20 | 160K(158L) | 15.0 | 12.25 | 996 | 386 | 4500 | 9920 | 900 | 130 | - | - | - | - |
| 385/65R22.5 | L/20 | 160K | 15.0 | 11.75 | 1070 | 394 | 4500 | 9920 | 900 | 130 | - | - | - | - |
| 295/80R22.5 | J/18 | 154/149L | 18.0 | 9.00 | 1050 | 298 | 3750 | 8270 | 900 | 131 | 3250 | 7160 | 900 | 131 |
| 315/70R22.5 | L/20 | 156/150K(152/148L) | 17.0 | 9.00 | 1020 | 312 | 4000 | 8820 | 900 | 130 | 3350 | 7390 | 900 | 130 |
| 315/80R22.5 | J/18 | 154/151M(156/153L) | 18.0 | 9.00 | 1076 | 312 | 3750 | 8270 | 830 | 120 | 3450 | 7610 | 830 | 120 |
| 315/80R22.5 | L/20 | 157/154K | 18.0 | 9.00 | 1076 | 312 | 4125 | 9090 | 900 | 130 | 3750 | 8270 | 900 | 130 |
